CRL 3" Mill Aluminum 90º Vertical Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railings
SKU: GR30VM
UPC:
Product Details:
- Ready to Install
- Several Architectural Finishes Plus Mill
Aluminum
- Requires Two Connector Sleeves (Not
Included)
|
This CRL Interior slip-fit Vertical
Corner is for 1/2 or 5/8 inch (12 or 16 millimeter)
thick glass which allows for hairline joint assemblies with
straight lengths of CRL Cap Rail. Use of our 32629 Metal Contact Cement is
required to achieve a secure and permanent bond. Two Connector
Sleeves are required for use with each Corner. Each Vertical Corner
is fabricated, finished, and individually packed. All of our
stainless and brass corners are fabricated from CRL Premium Cap
Rail and are welded
and finished to match. Our aluminum corners are welded for painted
finishes only. All anodized finishes utilize a custom fabricated
internal splice that creates an architecturally pleasing mitered
joint. Standard stainless alloy is 304. Stainless alloy 316 is
available on special order. Please contact us at for more
information or a quote.
NOTE: When used with 1/2 inch (12 millimeter) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to
secure the glass. When used with 5/8 inch (16 millimeter) glass,
secure with 95CBL Silicone
and shims.

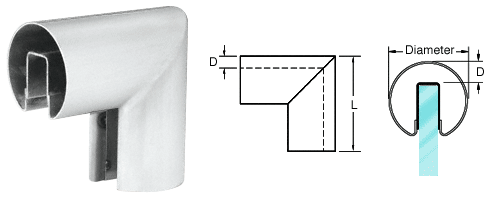

* This dimension is used to calculate the glass size. Add the
clearance you desire or add an additional 1/8" (3.2 mm) if using
Cap Rail Vinyl.
