Category: 3-1/2" Diameter Cap Railings

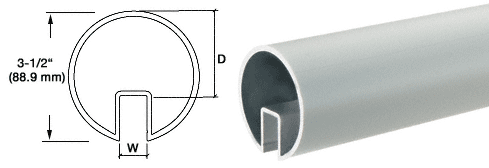

CRL 3-1/2" Mill Aluminum Extruded Aluminum Cap Rail for 1/2" (12 mm) or 5/8" (16 mm) Glass - 240 in Long
SKU: GR35M
UPC:
$544.86
(20% off)
$454.05
Product Details:
- Connects to a Variety of Fabricated Corners and End
Caps
- Custom Shapes and Sizes are Available
- 240" (6.10 m) Long Extrusion
|
CRL Extruded Aluminum Cap Rails are
extruded from alloy 6063-T6, which is suitable for custom finishes
such as anodizing, powder coating, etc. Use of our Cat. No. 32629
Metal Contact Cement is
required to achieve a secure and permanent bond at all connections.
Use Connector Sleeves to connect Cap Rails. Please contact us at
for more information or a quote.NOTE:
When used with 1/2 inch (12 millimeter) glass, our Cat. No. GR5PV
Cap Rail Vinyl and Cat. No.
95CBL Silicone should be
used to secure the glass. When used with 5/8 inch (16 millimeter)
glass, secure with Cat. No. 95CBL Silicone and Shims.
