CRL 3-1/2" Mill Aluminum 90 Degree Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing
C.R. Laurence CRL 3-1/2" Mill Aluminum 90 Degree Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing | GR35HM
Category: Corners and Connectors for 3-1/2" Cap Railings

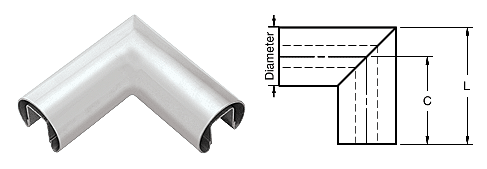

CRL 3-1/2" Mill Aluminum 90 Degree Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing
SKU: GR35HM
UPC:

Product Details:

  • Welded and Finished. Ready to Install.
  • Five Architectural Finishes Plus Mill Aluminum. New Oval Corners in Three Finishes.
  • Requires Two Connector Sleeves (Not Included)

CRL 90 Degree Horizontal Corners for 1/2 inch (12 millimeter) or 5/8 inch (16 millimeter) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner. Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Our aluminum corners are welded for painted finishes only. All anodized finishes utilize a custom fabricated internal splice that creates an architecturally pleasing mitered joint. Standard stainless alloy is 304.

Stainless alloy 316 is available on special order. For brass, alloy 260 is standard. Please contact us for more information or a quote.
NOTE: When used with 1/2 inch (12 millimeter) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8 inch (16 millimeter) glass, secure with shims and 95CBL Silicone.
