Product Details:
Low Maintenance Vinyl System
Accepts Standard Fiberglass Screen Wire and Serrated Retainer
Spline
No Rusty Nails, Staples or Loose Screens
CRL Screen Tight™ Vinyl Screen
Frame is a common sense approach to screening a porch
or sun room area.
The 1-1/2 inch ( 38.1 millimeter) base attaches to existing 2x4
(50.8 x 101.6 millimeter) or 4x4 (101.6 x 101.6 millimeter) framing
with wood screws, roof tacks, or staples.
Length: 96 in (2438 mm)
Pre punched holes on eight inch (196 millimeter) centers result in
a quick and consistent attachment. Once the base is attached, the
screen and spline are rolled into place with a standard screen
spline roller. If aluminum screen wire is being used, the SS165
series spline is recommended; for fiberglass wire use SS175 series
spline. The excess screen is cut and removed. The cap snaps into
the base, completing the installation.
Screen Tight™ is durable and weather resistant. It never needs
painting, and won't corrode, rust or rot. Re screening is fast and
easy. Simply pop off the cap and roll in the new screen wire.

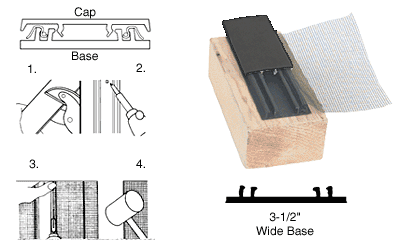

Four Easy Installation Steps Shown in the Photo Above
1. Base component is easily cut to fit with Trimming Snips.
2. Attach base to existing wooden frame with screws or roofing
tacks.
3. Secure screen to base with screen spline by rolling spline into
groove.
4. Trim excess screen and snap cap into base.
