Product Details:
- Designed for High Volume Glass Drilling
- Full 3/8" (9.5 mm) of Diamond Cutting
Surface
- Threaded for Use in Belgian Type Drill
Chucks
|

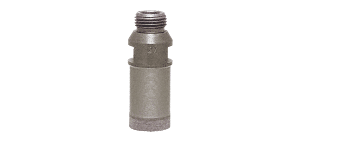

CRL PDT Series Metal Bond Diamond
Drills use a special diamond and brass bond for
maximum performance in glass. Metal bond drills offer the greatest
life, 1000 to 2000 holes in 1/4 inch (6.4 millimeter) glass with
proper maintenance and the use of a wet Sharpening Stone to expose fresh
diamonds, of any type of diamond drill. PDT Series
Diamond Drills use a special diamond and brass bond
for maximum performance in glass drilling. These Italian made
multi-layer drills cut faster and run cooler than any other drill
on the market. They have a full 3/8 inch (9.5 millimeter) deep
cutting surface filled with diamonds and bronze bond, which allows
for long drill life, but also makes this style drill more fragile.
They should always be used in true running machines on flat glass
surfaces.
CRL PDT Series Drills can be used in
portable drill machines such as the CRL AMZ1, but are especially suited
for production equipment such as double-opposed drilling machines
from ADA®, Besana-Lovati® or Schiatti® to name a
few. These diamond drills feature Belgian style mounting threads
(also known as 1/2 inch (12.7 millimeter) gas thread), which is
popular among all U.S. and European glass drilling machines.
- Diameter: 1.06 in (27 mm)
- Length: 3 in (76.2 mm)
