Product Details:
- Top Loading Gasket
- Fits 3/8" and 1/2" (10 and 12 mm) Glass
- Available in Two Finishes
|

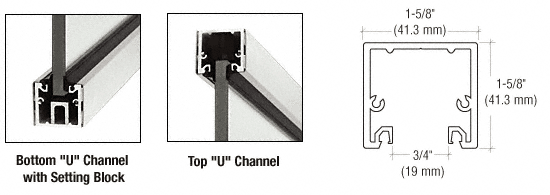

CRL Regular U-Channel With Top Load
Roll-In Glazing Gasket was designed to be used with 3/8 inch or 1/2
inch (10 or 12 millimeters) glass in conjunction with our Patch
Hardware, or our Header for Overhead Door Closers with Fixed
Sidelites and Door Rail Systems. The design allows it to be surface
or recessed mounted, with the Top Load Roll-In Glazing Gasket
securing the glass.
This multi-functional extrusion comes in six standard finishes, and
has a family of accessories that facilitate different installations
The 4 inch (101.6 millimeter) long Aluminum and Neoprene Setting
Blocks provide a rigid support for the glass in the bottom channel.
They are the proper height to provide 9/16 inch (14.3 millimeter)
glass bite in both the top and bottom channels when glazed with the
'lift and drop' method.
NOTE: For installations using 1/2 inch (12
millimeter) glass, the Roll-In Glazing Gasket is included in the
package. If using 3/8 inch (10 millimeter) glass the Roll-In
Glazing Gasket must be ordered separately. Our policy for Quick
Pick products is as follows: These products are stocked in our
centralized warehouse, and upon your order will be shipped on our
next re-supply truck to your regional CRL warehouse. Re-supply
trucks ship every week, so if your regional warehouse does not have
stock of the product you require, your order can be filled in just
a few days.
You can check the stock availability of any CRL product when you
click on the box above marked "CHECK STOCK AVAILABILITY".
Available for Will Call only at any CRL Warehouse. 7 to 10 days
advance order required.
- Length of Channel: 240 in (6.10 m)
- Color: Satin Anodized
