Product Details:

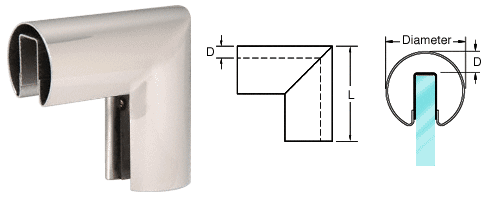

This CRL Interior slip-fit Vertical Corner is for 3/4 (19 millimeter) thick glass which allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner. Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail and are welded and finished to match. Our aluminum corners are welded for painted finishes only. All anodized finishes utilize a custom fabricated internal splice that creates an architecturally pleasing mitered joint. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact us at for more information or a quote.

NOTE: When used with 3/4 inch (19 millimeter) glass, 95CBL Silicone and shims should be used to secure the glass.
* This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl. Use Only Stainless Steel Connector Sleeves.
