4 to 8 Pound Vent Weight
Industry Standard 9/16" Size for Aluminum Windows
Nylon Guides Not Required

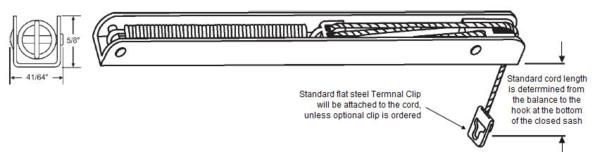

Standard cord 25" long with the standard clip attached.
If cord length is different from the standard length above, please,
call us at 216-663-9830 to order correctly.
Standard flat steel Termnal Clip will be attached unless optional
clip is ordered. Please, click
HERE to choose an optional clip.
This Overhead Channel Balance
will replace a 9/16 inch (14.3 millimeter) balance used in aluminum
windows made by Premiere, International, A1
Aluminum, Marshall, Guaranteed Products and others most
commonly found on the west coast. This balance will accommodate a 4
to 8 pound (1.8 to 3.6 kilogram) vent weight. It is easy to install
and nylon guides are not required.
If the window uses a lift hook, use item
H3904.
Channel Length: 15-1/4 in (387.35 mm)
Stamped Number: 121
Vent Weight: 4 to 8 lb
(1.8 to 3.6 kg)
Minimum Order: 1 Package
How to Order Overhead Channel Balances
1. Measure the metal channel length only.
2. Check the stamped number on the metal channel being
replaced.
3. Match channel length and stamped number with the Catalog
Number.
One per package
"SPECIAL ORDER ITEM - NON-REFUNDABLE,
NON-RETURNABLE."
