Category: CRL 4-Bar Stainless Steel 90 Degree Hinge
CRL 14" 4-Bar Heavy-Duty Stainless 90 Degree Window Hinge
SKU: EP21325
UPC:
Product Details:
Non-Handed
Stainless Steel

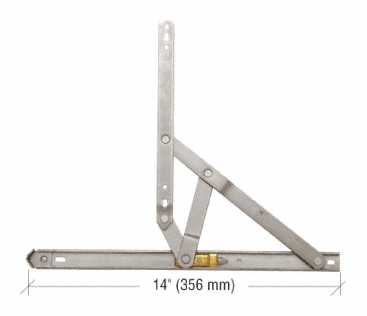

This 90 Degree 4 Bar Hinge is designed for
casement window applications. Similar to the standard 4-bar hinge,
with the exception of allowing a full 90 degree opening of the
vent. All 90 degree hinges come with a brass slide shoe. This
heavy-duty hinge is recommended for a maximum vent weight of 100
pounds (45.5 kg). Since these hinges pull the sash away from the
jamb as it opens, these hinges only work with Dyad type casement
operators.
Length: 14 in (356 mm)
Minimum Order: 1 Package (one hinge per pack.)
