Product Details:

Uses Top Loading Roll-In Glazing Gasket for 3/8" and 1/2" (10 and 12 mm) Glass
Ideal for Ceiling or Floor Installations
Six Standard Architectural Finishes
Custom Finishes and Powder Painting Available
Custom Lengths Available

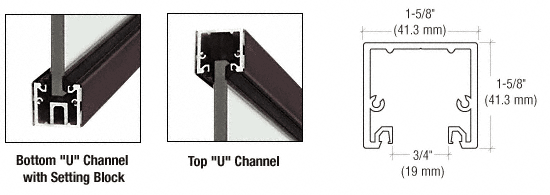

CRL Regular U-Channel With Top Load Roll-In Glazing Gasket was designed to be used with 3/8 inch or 1/2 inch (10 or 12 millimeters) glass in conjunction with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and Door Rail Systems. The design allows it to be surface or recessed mounted, with the Top Load Roll-In Glazing Gasket securing the glass. This multi-functional extrusion comes in six standard finishes, and has a family of accessories that facilitate different installations The 4 inch (101.6 millimeter) long Aluminum and Neoprene Setting Blocks provide a rigid support for the glass in the bottom channel. They are the proper height to provide 9/16 inch (14.3 millimeter) glass bite in both the top and bottom channels when glazed with the 'lift and drop' method. NOTE: For installations using 1/2 inch (12 millimeter) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8 inch (10 millimeter) glass the Roll-In Glazing Gasket must be ordered separately.

Color: Dark Bronze

Length of Channel: 120 in (3.05 m)

Additional Product Information:
This product is manufactured as needed. Lead time of 1-2 weeks.
