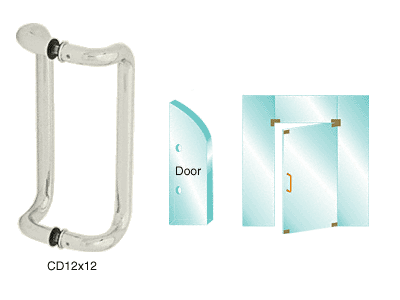

CRL 12" Brushed Stainless Glass Mounted Offset Pull Handle
C.R. Laurence CRL 12" Brushed Stainless Glass Mounted Offset Pull Handle | CD12X12BS
Category: CD Series Glass Mounted Offset Back-to-Back Pull Handles
CRL 12" Brushed Stainless Glass Mounted Offset Pull Handle
SKU: CD12X12BS
UPC:

$140.70 (20% off)

$117.25

Product Details:

  • For Use With 3/8" and 1/2" Glass
  • Made of 1" Diameter Stainless Steel or Brass Tubing
  • Available in Several Architectural Finishes

This CRL Glass Mounted Offset Pull Handle is available in many different finishes. SPECIFICATIONS:
Includes:

  • CD12X12 or CD18X18 Pull Handles (Back to Back Mounting)
  • Two Each Through Bolts for Glass Mounting
  • Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal Washers and Gaskets
    For Use With:
  • 3/8 Inch (10 millimeter) Glass
  • 1/2 Inch (12 millimeter) Glass
    Construction:
  • One Inch (25 millimeter) Diameter Stainless Steel or Brass Tubing
    Glass Fabrication Required:
  • Two 5/8 Inch (16 millimeter) Diameter Holes
  • CD12X12 12 Inches (305 millimeter) Center-to-Center
  • CD18X18 18 Inches (457 millimeter) Center-to-Center


  • For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
