CRL 10 Pad 120V DC Vacuum Frame - 1,200 Pound Capacity
C.R. Laurence CRL 10 Pad 120V DC Vacuum Frame - 1,200 Pound Capacity | VLGG109DC
Category: Just Arrived!
CRL 10 Pad 120V DC Vacuum Frame - 1,200 Pound Capacity
SKU: VLGG109DC
UPC:

$17,120.04 (20% off)

$14,266.70

Product Details:

  • Designed for Upright Glass Handling

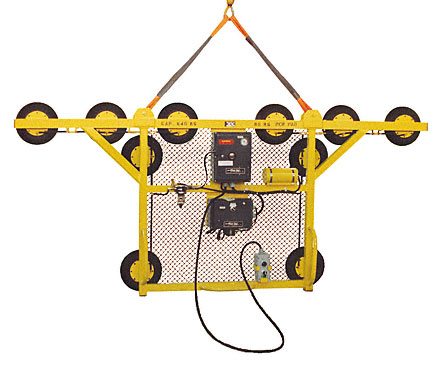

  • This CRL Wood's 1,200 Pound Capacity D.C. Gentle Giant Vacuum Lifting Frame is designed for vertical lifting of large lights of glass. Overhead cranes or hoists of your supply provide upward and downward movement. This vertical lifter is used when rotation and tilt are not required for load positioning. The "T" shaped frame distributes the the lift equally, providing rigidity and stability accross the glass surface. Vacuum controls are conveniently mounted on the lower bar assembly for easy access.

    The VLGG109DC uses a 12 volt, 22 amp power supply. The ten, nine inch (229 millimeter) lipped vacuum cups apply to the glass in only four seconds and release from the glass in approximately four seconds.
  • Lift Capacity: 1200 lb (545 kg)
  • Pad Spread Size: 51 x 117-1/4 in (1292 x 2975 mm)
  • F.O.B : Laurel, MT
