Product Details:
- Makes Two 45° Miters at One Time
- Engineered For High Production

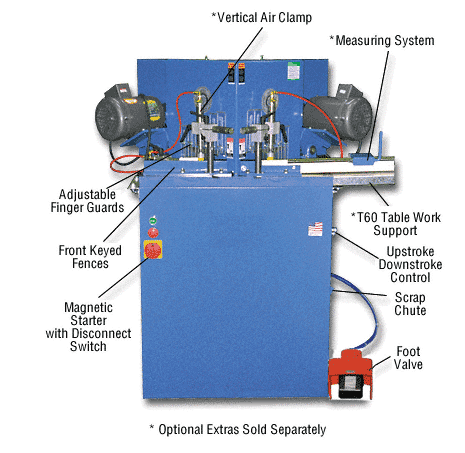

This
CRL Fixed Double End 45 Degree Miter Saw is
popular because of its unique features and precision. Engineered
for higher production, this double miter saw makes two 45° miters
at one time, saving time and materials.
Standard Features and Specifications:
- Blade Capacity: 10 inches OD (254 millimeters) Saw blades not
included
- Spindle & Pivot: Both mounted on pre-loaded and sealed ball
bearings
- Arbor: 5/8 inch (16 millimeters) with 2-1/4 inch (57
millimeter) saw collars
- Iron Castings: Saw arm, pivot brackets and table are precision
machined and ground with milled slots in table to guide pivot
brackets and fences
- Motors and Voltages: 1-1/2 H.P. single phase 115/230 Volt and 3
phase 230/460 Volt, Totally Enclosed Fan Cooled Motors, 60 Hz, 3450
RPM with Dual Magnetic Starter
- Table Height: 34-1/2 inches (876 millimeters) from
floor
- Floor Stand: Close coupled heavy gauge steel stand completely
enclosed with six inches (152 millimeters) dust outlet. 1200 CFM
required
- Blade Wear and Angular Adjustments: Each saw head has
adjustments for blade variation. Allows for precision alignment of
blades to minimize scrap. Saw heads are adjustable up to 3°,
always assuring perfect mitres
- Length of Stroke Adjustment: The D45AX is unique in that the
stroke of the machine and the position of the blade above the work
can be adjusted to use only the stroke needed to cut a particular
molding or extrusion. Saw heads reverse immediately, thereby saving
time and motion
- Production Rate: The D45AX is capable of cycling at one second
intervals. However, actual production rates vary with the type and
width of material to be cut
- Size: Standard machine, without tables or gauges; Weight 550
pounds (250 kilograms); 46 inches (1168 millimeters) Wide x 22
inches (559 mm) front to back x 51-1/2 inches (1308 millimeters)
High
- Actuation: Pneumatic foot valve with cover
- Air Pressure: 75 PSI (5.4 kg/cm2) with Air
Filter/Regulator/Lubricator; includes Auto Drain
- Air Consumption: 1.0 CF per 10 strokes at 75 PSI (.043 cubic
meters per minute at 5.4 kg/cm2)
