Product Details:
Used to
Mount Glass, Acrylic or Wood Panels to Walls, Brackets or Columns
Durable High Tech Finish
This CRL Stainless Steel Standoff Assembly
is very popular in architectural applications to secure a lite of
glass to a threaded metal bracket or column without the use of a
frame.
Glass fabrication requires 5/8 inch (16.8
millimeter) diameter holes, tempered and secured with the Standoff
to create a frameless appearance.
Color:
Stainless Steel
Diameter: 1-3/16
in (30 mm)
Cap Thickness: 1/4 in (6 mm)
Base Thickness: 3/8 in (10 mm)
Additional Product
Information:
The End Cap used with this Standoff is
secured with the optional Spanner Wrench.
Please note that this SW30 Wrench only
works with the SS30 Standoff Cap Assembly, and is not compatible
with other CRL Standoff Systems.

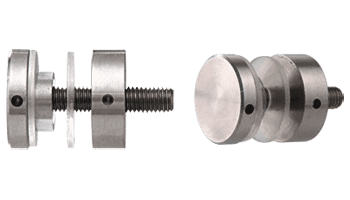

The Standoff Assembly consists
of:
(1) Cap - 1/4 inch thick (6
millimeter)
(1) Base - 3/8 inch thick (10
millimeter)
(1) Allen Screw - M8 metric thread x 3/4
inch (19 millimeter) long
(2) Vinyl Washers - 1-3/16 inch (30
millimeters) diameter
(1) Vinyl Sleeve - 3/16 inches (5
millimeters) long
The Stainless Steel Standoff is designed to
be used with panels ranging in thickness from 1/4 to 1/2 inches (6
to 12 millimeters).
The maximum recommended panel size for 1/2
inch (12 millimeter) glass is 39 inches (975 millimeters) x 79
inches (1,975 millimeters) with a maximum weight per attachment
point of 55 pounds (25 kilograms). A 5/8 inch (16 millimeters)
drilled hole is required for installation.
Additional Standoffs and attachment points
should be used as needed.
Important Note:
Subject to Strength of Attaching Substrate
and Glass Deflection. Use Additional Attachment Points as
Required.
