Product Details:

Bump Formed and Welded 120” (3.05 m) Stock Lengths are Available in Three Diameters and Several Architectural Finishes
Connects to a Variety of Fabricated Corners and End Caps
Cut to Size or Custom Fabricated Lengths Also Available
Stainless Alloy 304 is Standard

All CRL Premium Cap Railings are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded every three inches (76.2 millimeters) to increase strength and stability for fabrication. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Color: Brushed Stainless

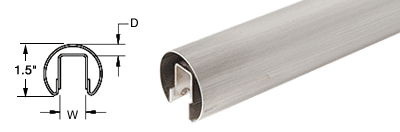

Length:      10 ft (3.05 m)
W:             5/8 in (15.9 mm)
D:              5/16 in (7.9 mm)
Thickness: .050 in (1.27 mm)

Minimum Order: 1 Each (10 ft long)

Additional Product Information:
Use the Connector Sleeves to connect Cap Rails.

NOTE:
When used with 3/4 inch (19 millimeter) glass, 95CBL Silicone and shims should be used to secure the glass.
