Product Details:
16-gauge cold rolled steel.
Slotted Standards Allow for Shelf Height Adjustments in 1" (25 mm)
Increments.
Use on Walls, Displays and Showcases.
Made in the USA.

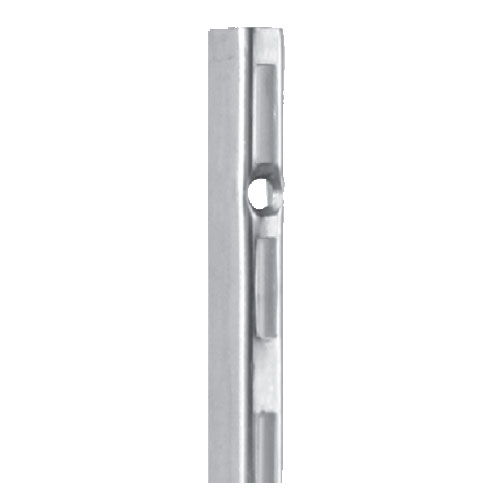

KV 71 Series Standards compatible with KV's
170 Series bracket, this narrow standard works well in
specialty applications where space is limited. These standards
allow for 1" vertical adjustability of brackets. The profile
of these standards are 5/16" wide by 13/32" deep.
KV Steel Standards and Brackets make building
shelf units simple. They're so flexible, design versatility is
virtually limitless. Our Steel Standards and Brackets are all high
quality, precision fitted pieces. They are easily assembled and
mounted, and work efficiently for most any shelving need. You get
the advantages of both durable steel construction and a choice of
finishes. For decorative uses in display and showcases, and utility
uses for storage applications.
Length: 72"
Color: Anochrome
Installation:
For maximum loading capacity, standards should be mounted directly
to wall studs, which are generally found at 16" intervals. (If
standards will not be mounted to studs, use appropriate wall
anchors.) Use the recommended fasteners (#6 head and #8 body x
1-1⁄2" screws) in all holes to properly secure the
standard. Prior to drilling all holes, check to be sure that the
standard is vertically level. Place the bracket into the standard
slots. Using a hammer handle or screwdriver handle, tap lightly
near the bracket’s base. The bracket will snap into place.
