HOME » Showers, Vanities and Shower Columns by Dreamline » Dreamline Shower and Tub Kits » Dreamline Bathtub Kits Iincluding Door and Backwall » DL699704CL

DreamLine DL-6997-04CL Charisma 56 to 60 Frameless Bypass Sliding Tub Door and QWALL-Tub Backwalls Kit

View larger image    Printer friendly
Part Number:
DL699704CL
Our Price:
$1,000.30

Quantity
* To see your shipping charges click "View Cart" after adding your item to the shopping cart.
Product Details:
This DreamLine™ kit offers the perfect solution for a bathroom remodel with a CHARISMA™ frameless bypass tub door and a coordinating backwalls panels. The CHARISMA has a “no wall profile" design for the unique combination of a bypass sliding shower door and the beauty of frameless glass. Back wall panels made from durable and attractive Acrylic/ABS materials in a tile pattern finish the bathroom transformation.Items Included: Charisma Tub Door and QWALL-Tub Backwalls Kit

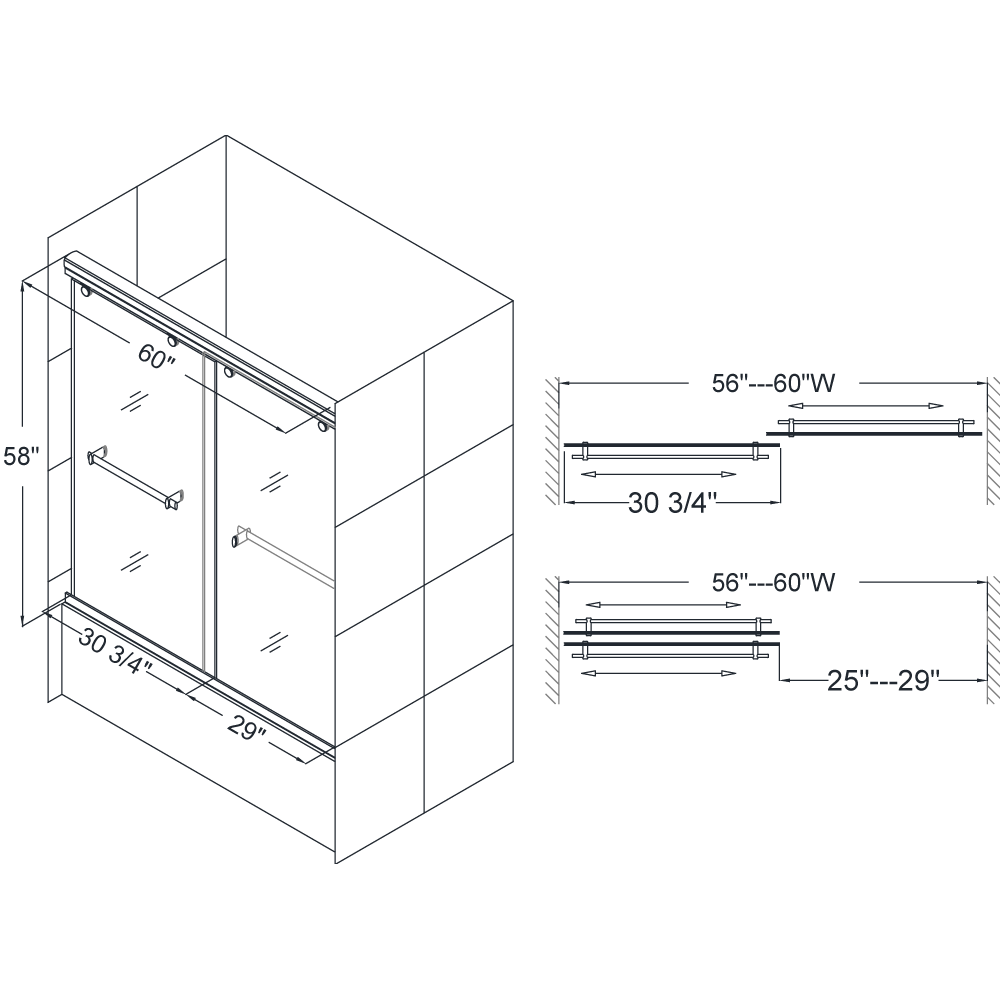

Overall kit dimensions: 28 - 32 in. D x 56 - 60 in. W x 60 in. H

Charisma Tub Door:
  • 56 - 60" W x 58" H
  • 5/16 (8 mm) thick clear tempered glass
  • Brushed nickel finish hardware
  • Frameless glass design
  • Width installation adjustability: 56 - 60"
  • Out-of-plumb installation adjustability: No
  • 2-panel frameless sliding (bypass) shower door
  • Fashionable towel bars provide additional storage space
  • Unique "no-wall profile" design creates frameless look
  • Anodized aluminum guiderails
  • Door opening: 25 - 29"
  • Stationary panel: 30 3/4"
  • Material: Tempered Glass, Aluminum
  • Tempered glass ANSI certified


  • QWALL-Tub Backwalls Kit:
  • Color: White
  • Assembly required
  • Durable acrylic/ABS construction
  • Compatible with most rectangular shaped bathtubs
  • Specially designed to be installed over existing solid surface (not directly against the studs)
  • Attractive tile pattern
  • Includes 2 glass corner shelves
  • Depth may be trimmed down from 32" to 28"
  • Width may be trimmed down from 59 1/2" to 56"
  • Height is 60"
  • Tub is not included
  • Color/Configuration:  04 - Brushed Nickel Finish Hardware Tempered Glass, Aluminum, Acrylic body
  • Product Depth (Inches):  28 - 32
  • Product Width (Inches):  56 - 60
  • Product Height (Inches):  60
  • Glass Thickness (Inches):   5/16
  • Shipping Method:  LTL

    Installation Manual Installation Manual Technical DrawingsTechnical Drawings
